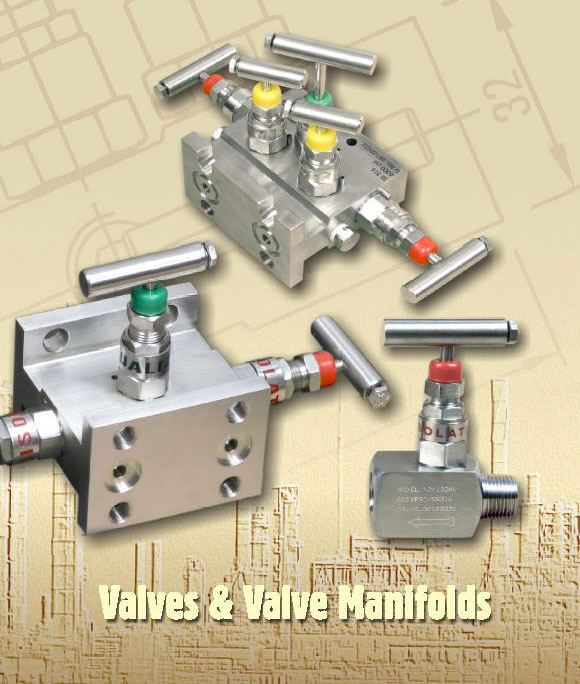

Separately mounted Manifold – our manifold are available in 2,3,& 5 valve construction & primary isolation valve manifold mfged are for installation form the instrument and are usually connected by means of tubes /tube fitting , pipe /fitting ,
T-Type manifold – manifold are meant for direct mounting on the instrument & screwed process connection , these can be provided with test ports on the process sides & drain ports on the instruments lines respectively .
H-Type - manifold are meant for direct mounting for stacking between the instrument & flanged process connection ,
2 Way -3 Way manifold - manifold are meant for use with process transmitter, pressure switcher & gauges
5-way Manifold - are normally meant for use different pressure instrument where drain valve are required on the instrument side they are useful for flushing system. |
